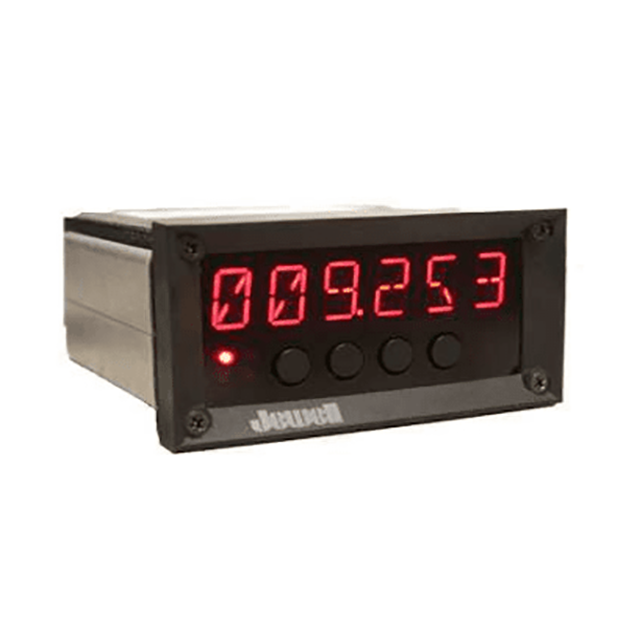

Jewell DSI-1000 Series Digital Slope Indicator Display

Updated:2026-01-09

Brand: Jewell
Model: DSI-1000
Description: Dual Axis Panel Mount Display available for a wide variety of applications. The Jewell Instruments DSI-1000 Series Digital Display is a microprocessor-based panel meter designed to take the output fro
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell DSI-1000 Series Digital Slope Indicator Display Description：

Datasheet Outline Drawing User Manual

Dual Axis Panel Mount Display available for a wide variety of applications. The Jewell Instruments DSI-1000 Series Digital Display is a microprocessor-based panel meter designed to take the output from Jewell’s gravity-referenced inclinometers and display it at an angle. The compact unit provides the ±15VDC sensor excitation with dual channel inputs condition the inclinometer output and displays the angle down to 0.001 degrees.

Specifications

Features	• Dual Channel Inputs • Front Panel Digital Zero (Tare) • Splash Proof Bezel • Heavy Duty Aluminum Case • Front Panel Switches for Programming and Calibration • 6 Digits, 0.56” LED Readout with Negative Indication • Two Set-Points with Relay Closures • Short Case, Only 4” Behind Panel Depth • Programmable for Different Range Inclinometers • RS232 Interface Standard • 0 to 10VDC Analog Output • ±15 VDC Sensor Excitation
Applications	• Industrial: Used in conjunction with our inclinometer to provide a readout of the tilt in degree format • Marine: Alarm monitoring system • Industrial: Monitoring Remote Sensors • Fire Trucks: Monitoring tilt angle of ladders
