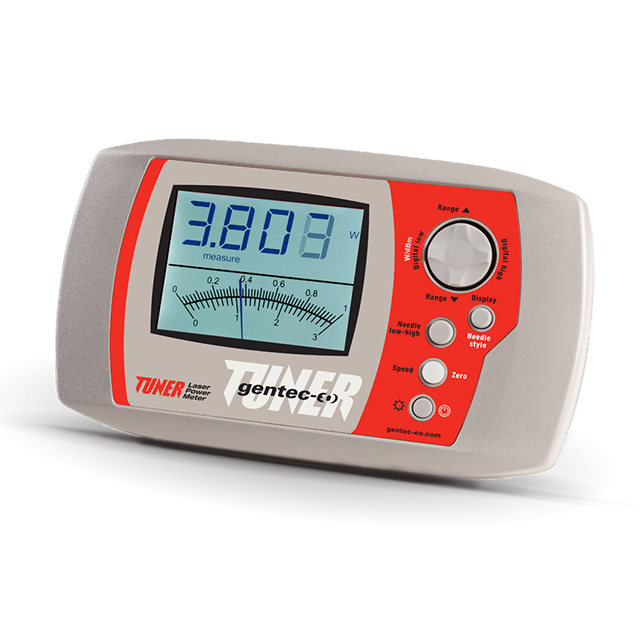

Gentec-EO TUNER Display Device

Updated:2025-04-21

Brand: Gentec-EO
Model: TUNER
Description: Gentec-EO TUNER Display device with tuning needle for power measurement. Single-channel.
Data download

Feedback
WeChat

QQ

Online Service

Gentec-EO TUNER Display device with tuning needle for power measurement. Single-channel.

Key Features

Ultra-Fast Needle

Less than 1 second response time

Reads Power Detectors

Thermopiles and photo detectors of the PH100 and PH20 series

Large LCD Display

77 x 58 mm

5 mm digits

Backlight (with AC adaptor)

3 Display Functions for the Needle

Normal

Tail (indicates speed)

Bargraph

Also high and low values hold

Single-Button Navigation

Direct access and long press access to the main functions

Low Consumption

Lasts 500 hours with 4 AA alkaline batteries

Specifications

Controller and GUI specifications
Digital display size	77 x 58 mm LCD
Data display	Real time, ultrafast tuning needle: tail, bar graph, high/low
Refresh rate	4 Hz
Analog output	0-1 V, full scale, ±1 %
External trigger	None
Battery type	4 x AA Alkaline
Battery life	500 hours with detector
External power supply	9 VDC 1.66 A
Power meter specifications
Digital resolution	10 pW
Device accuracy	±1 %, full scale
Statistics	Min, max
Response time	Min, max
Physical characteristics
Dimensions	210W x 122H x 44D mm
Weight	0.47 kg
